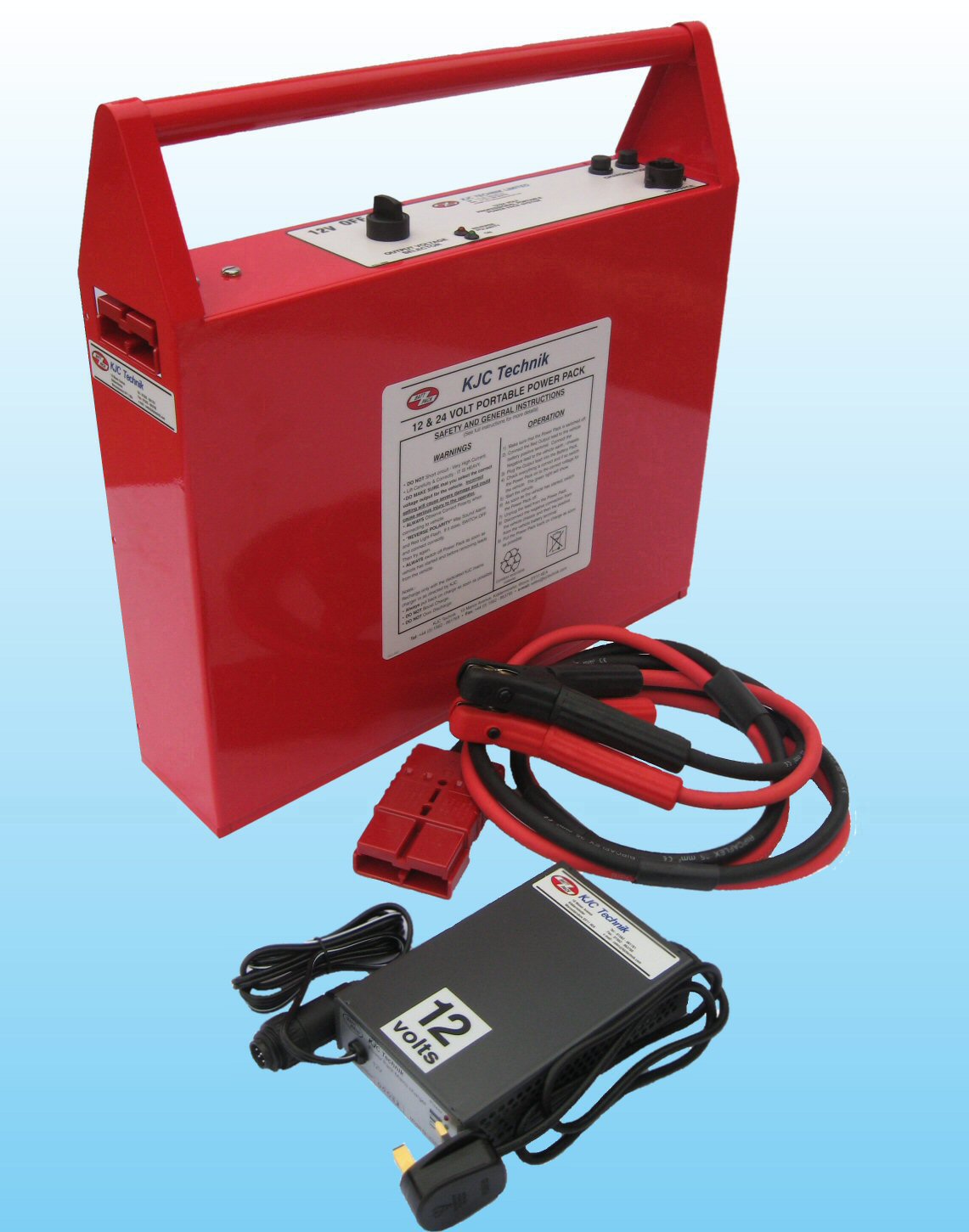

Dual voltage 12/24V Professional Power Pack K1224-26/37
Microprocessor Controlled 12/24 Volt System
Dual voltage 12/24V Professional Power Pack K1224-26/37 |
||
| Designed for starting vehicles with 12 or 24V electrical systems, our K1224 Packs delivers instant power when you need it. | ||
|
|
Microprocessor Controlled 12/24 Volt System |
|
Health and Safety Conscious - sophisticated control to protect the operator, the vehicle and the Pack. | |
|
Zintec steel case, seem welded for total strength, red powder coated for extra protection and recognition | |
|
Single output selector switch with heavy duty contactor switching | |
|
Heavy duty output lead with heavy duty high quality insulated croc clips | |
|
Single Polarised heavy duty output socket (no adapters to worry about) | |
|
|
10 Amp three stage mains charger - for fast recharge in demanding operational environments. | |
|
Choice of two models to suit all your requirements | |
Specifications |
| Model Number | K1224-26 | K1224-37 |
| Battery Capacity: (10Hr rate to 10.8V at 12V Output) | 32 / 64Ah* | 43 / 86Ah* |
| True Peak Power Transfer Current | >1500A (24V), >3000A (12V) | >2000A (24V) >4000A (12V) |
| Typical Equipment to Start* | Buses , Trucks, Plant, Motor Generators | Buses , Trucks, Plant, Motor Generators |
| Dimensions | 382w x 110d x 490h | 482w x 110d x 490h |
| Weight | 25kg | 33kg |
| Protection | Voltage Spike Snubbers | |
| Auto Lockout protection | Reverse Polarity, welded
Contactors, Wrong Voltage & Low Pack Battery Voltage Timed switch
off after 9 minutes |
|
| Visual and audible Indicators | Green LED (Power on), Red
LED (Reverse Polarity) Low Battery Warning and Cutout (110db Internal
Siren) |
|
| Electronic monitoring | 24V, Charger & Time Out
Usage |
|
| Supplied Lead | 2 Metre Heavy duty croc lip Lead |
|
| Supplied Charger | 12V 10A 3 stage mains charger |
|
*10Hr rate to 10.8V at 12V output |
||
